CD4001BC/CD4011BC

Quad 2-Input NOR Buffered B Series Gate • Quad 2-Input NAND Buffered B Series Gate

General Description

The CD4001BC and CD4011BC quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain.

All inputs are protected against static discharge with diodes to V_DD and V_SS.

Features

■ Low power TTL: Fan out of 2 driving 74L compatibility: or 1 driving 74LS

■ 5V–10V–15V parametric ratings

■ Symmetrical output characteristics

■ Maximum input leakage 1 µA at 15V over full temperature range

Absolute Maximum Ratings(Note 1) (Note 2)

Voltage at any Pin −0.5V to V_DD +0.5V

Power Dissipation (P_D)

Dual-In-Line 700 mW

Small Outline 500 mW

V_DD Range −0.5 V_DC to +18 V_DC

Storage Temperature (T_S) −65°C to +150°C

Lead Temperature (T_L)

(Soldering, 10 seconds) 260°C

Recommended Operating Conditions

Operating Range (V_DD) 3 V_DC to 15 V_DC

Operating Temperature Range

CD4001BC, CD4011BC −55°C to +125°C

Note 1: “Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be guaranteed. Except for “Operating Temperature Range” they are not meant to imply that the devices should be operated at these limits. The Electrical Characteristics tables provide conditions for actual device operation.

Note 2: All voltages measured with respect to VSS unless otherwise specified.

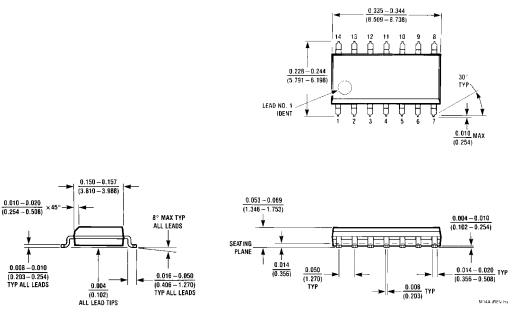

Physical Dimensions inches (millimeters) unless otherwise noted

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow

Package Number M14A
