    TDA8571J


    4 x 40 W BTL quad car radio power amplifier


    FEATURES


    • Requires very few external components

    • High output power

    • Low output offset voltage

    • Fixed gain


    • Diagnostic facility (distortion, short-circuit and temperature pre-warning)

    • Good ripple rejection

    • Mode select switch (operating, mute and standby)

    • Load dump protection


    • Short-circuit safe to ground and to VP and across the load

    • Low power dissipation in any short-circuit condition

    • Thermally protected

    • Reverse polarity safe


    • Electrostatic discharge protection

    • No switch-on/switch-off plop

    • Flexible leads

    • Low thermal resistance

    • Pin compatible with the TDA8568Q, except for the gain.


    GENERAL DESCRIPTION

    The TDA8571J is a integrated class-B output amplifier contained in a 23-lead Single-In-Line (SIL) plastic power package. It contains four amplifiers in a BTL configuration, each with a gain of 34 dB. The output power is 4 × 40 W (EIAJ) into a 4 Ω load.


    APPLICATIONS

    • The device is primarily developed for car radio applications.


    LIMITING VALUES

    In accordance with the Absolute Maximum Rating System (IEC 134).

    SYMBOLPARAMETERCONDITIONSMIN.MAX.UNIT
    VPsupply voltageoperating-18V
    non-operating-30V

    load dump protection;

    during 50 ms; tr ≥ 2.5 ms

    -45V
    Vsc(safe)short-circuit safe voltage-18V
    Vrpreverse polarity voltage-6V
    IOSMnon-repetitive peak output current-10A
    IORMrepetitive peak output current-7.5A
    Ptottotal power dissipation-60W
    Tstgstorage temperature-55+150°C
    Tamboperating ambient temperature-40+80°C
    Tvjvirtual junction temperature-150°C

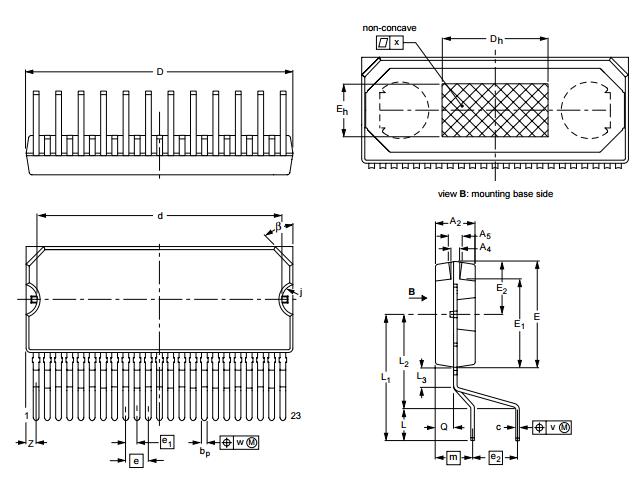

    PACKAGE OUTLINE

    DBS23P: plastic DIL-bent-SIL power package; 23 leads (straight lead length 3.2 mm) SOT411-1
