    BTA24-600CWRG 3 Pin Transistor 25 A standard and Snubberless triacs

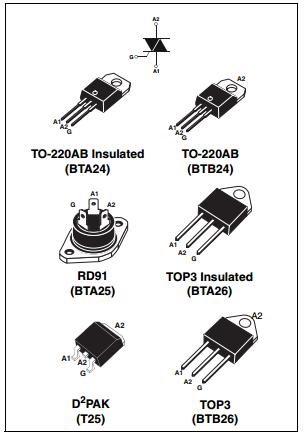

    BTA24, BTB24, BTA25 BTA26, BTB26, T25


    25 A standard and Snubberless™ triacs


    Features

    ■ High current triac

    ■ Low thermal resistance with clip bonding

    ■ High commutation (4 quadrant) or very high commutation (3 quadrant) capability

    ■ BTA series UL1557 certified (File ref: 81734)

    ■ Packages are RoHS (2002/95/EC) compliant


    Applications

    Applications include the ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, etc., or for phase control operation in light dimmers, motor speed controllers, and silmilar.


    The snubberless versions (BTA/BTB...W and T25 series) are especially recommended for use on inductive loads, due to their high commutation performances. The BTA series provides an insulated tab (rated at 2500 VRMS).


    Absolute maximum ratings

    SymbolParameterValueUnit
    IT(RMS)RMS on-state current (full sine wave)TOP3Tc = 105° C25A
    D2PAK / TO-220ABTc = 100° C
    RD91 Ins/ TOP3 Ins.Tc = 100° C
    TO-220AB Ins.Tc = 75° C
    ITSM

    Non repetitive surge peak on-state

    current (full cycle, Tj initial = 25° C)

    F = 50 Hzt = 20 ms250A
    F = 60 Hzt = 16.7 ms260
    I² tI² t Value for fusingtp = 10 ms340A² s
    dI/dt

    Critical rate of rise of on-state current

    IG = 2 x IGT , tr ≤ 100 ns

    F = 120 HzTj = 125° C50A/µs
    VDSM/VRSMNon repetitive surge peak off-state voltagetp = 10 msTj = 25° CVDRM/VRRM + 100V
    IGMPeak gate currenttp = 20 µsTj = 125° C4A
    PG(AV)Average gate power dissipationTj = 125° C1W

    Tstg

    Tj

    Storage junction temperature range

    Operating junction temperature range

    - 40 to + 150

    - 40 to + 125

    ° C
