    LP2983AIM5-1.0-NOPB SMD Ferrite Bead Micropower Voltage Regulator


    LP2983 Micropower 150 mA Voltage Regulator in SOT-23 Package For Output Voltages ≤ 1.2V Designed for Use with Very Low ESR Output Capacitors


    General Description

    The LP2983 is a 150 mA, fixed-output voltage regulator designed to provide tight voltage regulation in applications with output voltages ≤ 1.2V.

    Using an optimized VIP™ (Vertically Integrated PNP) process, the LP2983 delivers unequalled performance in all critical specifications:


    Ground Pin Current: Typically 825 µA @ 150 mA load, and 75 µA @ 1 mA load.

    Enhanced Stability: The LP2983 is stable with output capacitor ESR down to zero, which allows the use of ceramic capacitors on the output.

    Smallest Possible Size: SOT-23 package uses absolute minimum board space.

    Precision Output: 1% tolerance output voltages available (A grade).


    Features

    • Guaranteed 150 mA output current
    • Smallest possible size (SOT-23 package)
    • Requires minimum external components
    • Stable with low-ESR output capacitor
    • Low ground pin current at all loads
    • Output voltage accuracy 1% (A Grade)

    • High peak current capability
    • Wide supply voltage range (16V max)
    • Low ZOUT: 0.3Ω typical (10 Hz to 1 MHz)
    • Overtemperature/overcurrent protection
    • −40˚C to +125˚C junction temperature range

    Applications

    • Cellular Phone
    • Palmtop/Laptop Computer
    • Personal Digital Assistant (PDA)
    • Camcorder, Personal Stereo, Camera

    Absolute Maximum Ratings (Note 1)

    If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.


    Storage Temperature Range −65˚C to +150˚C

    Operating Junction Temperature Range −40˚C to +125˚C

    Lead Temp. (Soldering, 5 sec.) 260˚C

    ESD Rating (Note 2) 2 kV

    Power Dissipation (Note 3) Internally Limited

    Input Supply Voltage (Survival) −0.3V to +16V

    Input Supply Voltage (Operating) 2.2V to +16V

    Shutdown Input Voltage (Survival) −0.3V to +16V

    Output Voltage Survival, (Note 4) −0.3V to +9V

    IOUT (Survival) Short Circuit Protected

    Input-Output Voltage Survival,(Note 5) −0.3V to +16V

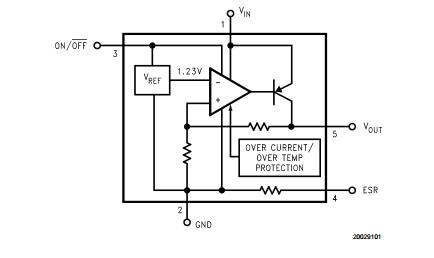

    Block Diagram


    Basic Application Circuit

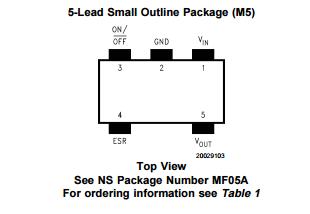

    Connection Diagram
